Read This First — Welcome to FitalyStamp
FitalyStamp 3 — for Palm OS4 SmartPhones
Contents:
- FitalyStamp - The package
- FitalyStamp Overlay Installation
- FitalyStamp Software Setup - Windows
- FitalyStamp Software Setup - Mac or Linux
- Notes on Upgrading
- Uninstalling FitalyStamp
- FitalyStamp User's Manual
- License Information
- Contacting Textware Solutions
This is a special edition of the FitalyStamp 3 software that applies to the
FitalyStamp - The package
The package includes four FitalyStamp overlays which you will find safely wrapped in the User's Manual. The overlays come in six different sizes that correspond to the supported forms:
Your package should contain four overlays of the form you ordered.
If you are using the demo version, see the additional installation notes for information on printing demo stamps using the enclosed pdf files.

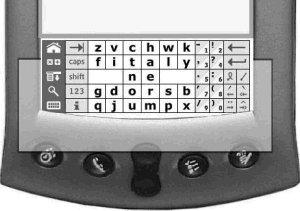

FitalyStamp Overlay Installation
FitalyStamps are printed in five colors on a polyester film and are overlaminated with a 1-mil polyester to protect the print from scratches. They are undercoated with a removable adhesive, which allows them to be removed without damaging the glass surface of the Palm handheld device. On the other hand, removal of a FitalyStamp must be done very slowly to avoid wrinkles in the overlaminate.
FitalyStamps are delivered on a transparent plastic backing. To install a FitalyStamp, remove it from the backing and place it back half-way on the backing so that part of the adhesive is exposed and your fingers can hold the backing.
 |
Then align the FitalyStamp on the surface of the Palm handheld. Make sure that the top black line is horizontal. Both the Kyocera 7135 and the Samsung SPH-i500 provide an exact fit with the left and right margins of the Graffiti area. |
Finally, apply the FitalyStamp and slowly remove the backing.
When you place the FitalyStamp initially, try to apply it very softly and leave some small part of the backing below one side to simplify removal. Then if there are bubbles, remove that side softly and reapply it progressively, using a finger to apply pressure and avoid bubbles. (It is also possible to apply a drop of some diluted window-cleaning solution as it will evaporate later.)
If you need to remove a FitalyStamp, use a piece of laser printer transparency film to lift a corner. Then remove the rest very slowly.
Note
Before installing the Stamp, it is recommended that you redo the digitizer alignment procedure (in the general preferences) using something very precise like the tip of a wooden toothpick. You may want to note the position of the alignment points on a transparent overlay, as these points will be covered by FitalyStamp once it is installed.
FitalyStamp Software Setup - Windows
To Install FitalyStamp, run the installer program FitalyStamp3Phone.exe.
The installation creates a FitalyStamp3Phone folder on your desktop computer, with documentation files as well as copies of the files to be installed on your Palm handheld.
The installer will ask you whether the installation is for the Kyocera 7135 or for the Samsung SPH-i500 (or another Palm OS 4 device) and it will let you select files to be installed the next time you perform a Hotsync operation:
Kyocera 7135:
FitalySetup3.prc — always installed FitalyStamp3.prc — always installed FitalyKyocera.pdb — always installed X-Master.prc — optional FitalyLetris.prc — optional FitalyLetrisDB.pdb — optional
Samsung SPH-i500 and other Palm OS 4 devices:
FitalySetup3.prc — always installed FitalyStamp3.prc — always installed X-Master.prc — optional FitalyLetris.prc — optional FitalyLetrisDB.pdb — optional
X-Master
Running Version 3 of FitalyStamp on Palm OS4 requires the presence of an Extension Manager such as X-Master, HackMaster, or TealMaster. The installer offers X-Master as an installation option, which you should select if you do not already have an Extension Manager on your Palm handheld.
FitalyLetris
The installation of FitalyStamp adds FitalyLetris to the FitalyStamp3 folder. FitalyLetris is both a word game and a training tool for fast text-entry with Fitaly or FitalyStamp.
FitalyLetris lets you practice the 400 most frequent English words as they are falling like the pieces of a tetris game. It helps FitalyStamp users develop a visual memory of these most common words on the Fitaly keyboard layout.
If you choose to install FitalyLetris, the optional files FitalyLetris.prc and FitalyLetrisDB.pdb will be installed.
Enable FitalyStamp after HotSync
Go to X-Master (or some other Extension Manager) and enable FitalyStamp.
Adjust Position
The final step of the installation is to let the Fitaly software recognize the current position of the FitalyStamp on the silkscreen area:
- Tap on the information key
to open the information menu.
- Tap on Adjust Position.
- Tap on FitalyStamp at the intersection of the t a n e keys.
(This final tap must be on FitalyStamp itself — not on the illustration diagram displayed on the screen.)
You can now start using FitalyStamp. For example, press the MemoPad button, open a new memo, and start typing on the Fitaly keyboard.
Notes on Reseting the Digitizer
Once FitalyStamp is installed over the Graffiti area, it covers the points that are used when calibrating the digitizer. If you need to reset the digitizer, you can use the following diagrams to locate the position of the calibration points:

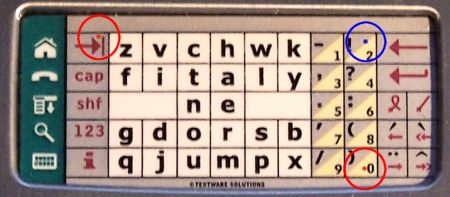

Kyocera 7135 |
 |

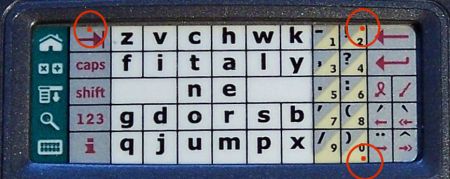

Samsung |
 |
Make sure you disable FitalyStamp before any digitizer recalibration.
The calibration points are shown in red on FitalyStamp (they are not on the printed stamps). The Kyocera 7135 uses two calibration dots, the Samsung SPH-i500 uses three. The blue dot on the Kyocera diagram shows the location of the contrast adjustment point (you need to tap on the keyboard toggle before using it).
FitalyStamp Software Setup - Mac or Linux
To Install FitalyStamp, unzip the zip archive FitalyStamp3Phone.zip.
Then use the Palm Install tool to install the files needed for your Palm handheld.
Kyocera 7135:
FitalySetup3.prc — always installed FitalyStamp3.prc — always installed FitalyKyocera.pdb — always installed X-Master.prc — optional FitalyLetris.prc — optional FitalyLetrisDB.pdb — optional
Samsung SPH-i500 and other Palm OS 4 devices:
FitalySetup3.prc — always installed FitalyStamp3.prc — always installed X-Master.prc — optional FitalyLetris.prc — optional FitalyLetrisDB.pdb — optional
Finally, after HotSync, enable FitalyStamp and perform the Adjust Position procedure, as in the case of the Windows installation.
Notes on Upgrading
If you are installing this version over a previous version of FitalyStamp, you must first uninstall the prior version. (See the next section.)
Note that for upgrading, you may safely overwrite the companion program FitalySetup without losing registration information, Application Bar settings, and your user-defined slides. On the other hand, the List of Most Recently Used applications is reset when you upgrade.
If you used version 2 of FitalyStamp, you can also delete the file FSStatus.prc, which is no longer used in version 3.
Un-Installing FitalyStamp
To uninstall FitalyStamp, perform the following two steps:
- Disable FitalyStamp
This first step is essential since going to the second step (deleting) without first disabling can leave the Palm handheld in an unstable state. Disabling is done from X-Master (or whatever extension manager you have).If you are in doubt, another way of making sure that FitalyStamp is disabled is to do a soft reset (the simple reset that is performed with a paper-clip or with a pen on the back of the Palm handheld).
- Delete FitalyStamp
in the same way as you delete any other Palm application: To open the Delete dialog, tap the Application icon, then tap the Menu icon and select Delete on the menu. (See the section "Installing and Removing applications" in the Handbook for the Palm handheld.)
To remove FitalyStamp completely from a Palm handheld, you also need to uninstall FitalySetup.prc, as well as the databases used for the Application Bar and for custom slides: FitalyAppBarDB and FitalyCustomSlidesDB. For the Kyocera 7135, you also need to delete the FitalyKyocera.pdb database.
FitalyStamp Users Manual
Read the attached User's Manual for a description of what you can do with FitalyStamp. This is the place where all usage options are described.
Additional information is provided in the following documents:
- Options and Advanced Features
- Panel Reference
- Character Reference
- FitalyStamp Index
- Additional Installation Notes
License Information
The use of FitalyStamp is subject to a License Agreement which applies to registered versions as well as to demo versions of the software.
Contacting Textware Solutions
| Address: |
Textware Solutions 58 Lexington Street Burlington, MA 01803 |
| Hours: | Monday-Friday 9:00 am - 6:00 pm |
| Phone: | (781) 272-3200 |
| Fax: | (781) 272-1432 |
| Sales: | 1 800 355-5251 |
| Email: | info@fitaly.com |
| Web: | www.fitaly.com |
| Support: | support@fitaly.com |
